MIL-DTL-38449D
2. Laminations shall be 0.01 thick commercial quality transformer steel with core loss
not exceeding 0.72 watt per pound. The minimum lamination cross-sectional area shall be 0.09
in.2 with the pole face dimensions as shown below.
(B) RECEIVER COIL DESIGN
1. The coil shall be made of 2,300 turns #36 B and S Formex magnetic wire or
equivalent with a resistance of 396 to 484 ohms.
2. Laminations shall be 0.01 thick commercial quality transformer steel with core loss
not exceeding 0.72 watt per pound. The minimum laminations cross-sectional area shall be
0.204 in.2 with the pole face dimensions as shown below.

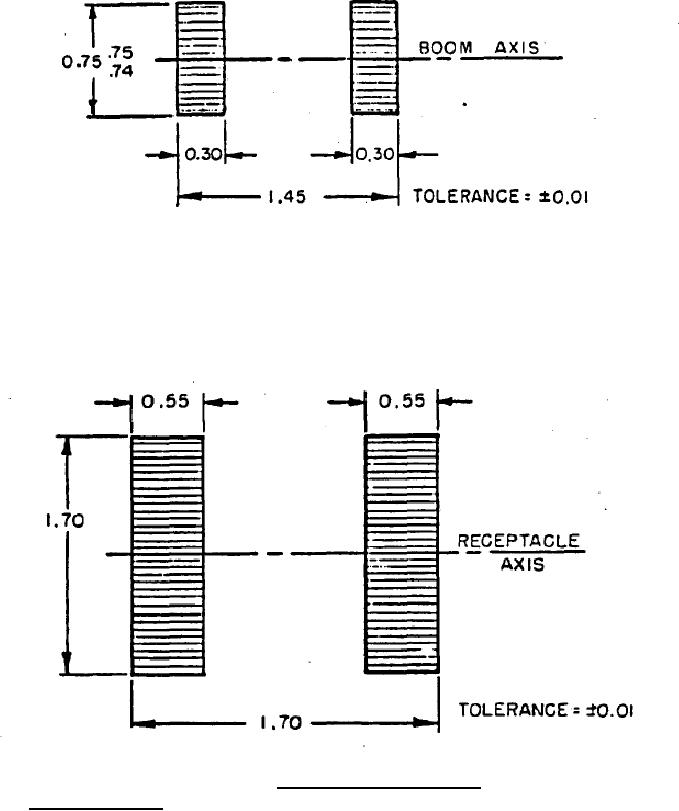

FIGURE 3. Tanker/Receiver coil design.
3.7.4 Dielectric strength. During manufacture and prior to connecting circuit ground to the
chassis, the units shall be capable of withstanding application of 1,000V ac (rms) 60 Hz between
12
